What is the difference between diamond grinding and shot blasting?

Diamond grinding uses rotating discs with diamond segments to remove surface material and create texture, working well for light contamination and existing thin coatings, while shot blasting propels steel media at high velocity to aggressively remove thick coatings and heavy contamination through impact rather than abrasion.

How do you determine the correct surface profile?

Profile depth depends on the coating system being installed, with manufacturer specifications typically requiring specific ranges measured with profile gauges, and insufficient profile causes adhesion failure while excessive profile creates pinholes and surface imperfections in the finished coating.

Can all cracks be repaired before coating?

Hairline cracks get filled with flexible polyurea or epoxy compounds that bridge the crack and prevent further dirt intrusion, but active structural cracks that continue to move require different approaches including control joint installation or acceptance that the crack will eventually telegraph through any coating material.

What contaminants prevent coating adhesion in Andover?

Oil from vehicles, deicing salts, tire plasticizers, curing compounds, and carbonation all create barriers that must be mechanically removed, with Andover garage floors commonly showing salt accumulation from winter vehicle storage that requires thorough preparation before coating products will bond reliably.

How long does surface preparation take?

Time varies with slab size, contamination level, and number of repairs needed, with most residential garage floors requiring four to eight hours of preparation work before coating application can begin, though heavily contaminated commercial spaces may need multiple days of preparation and repair.

Concrete Surface Preparation & Repairs

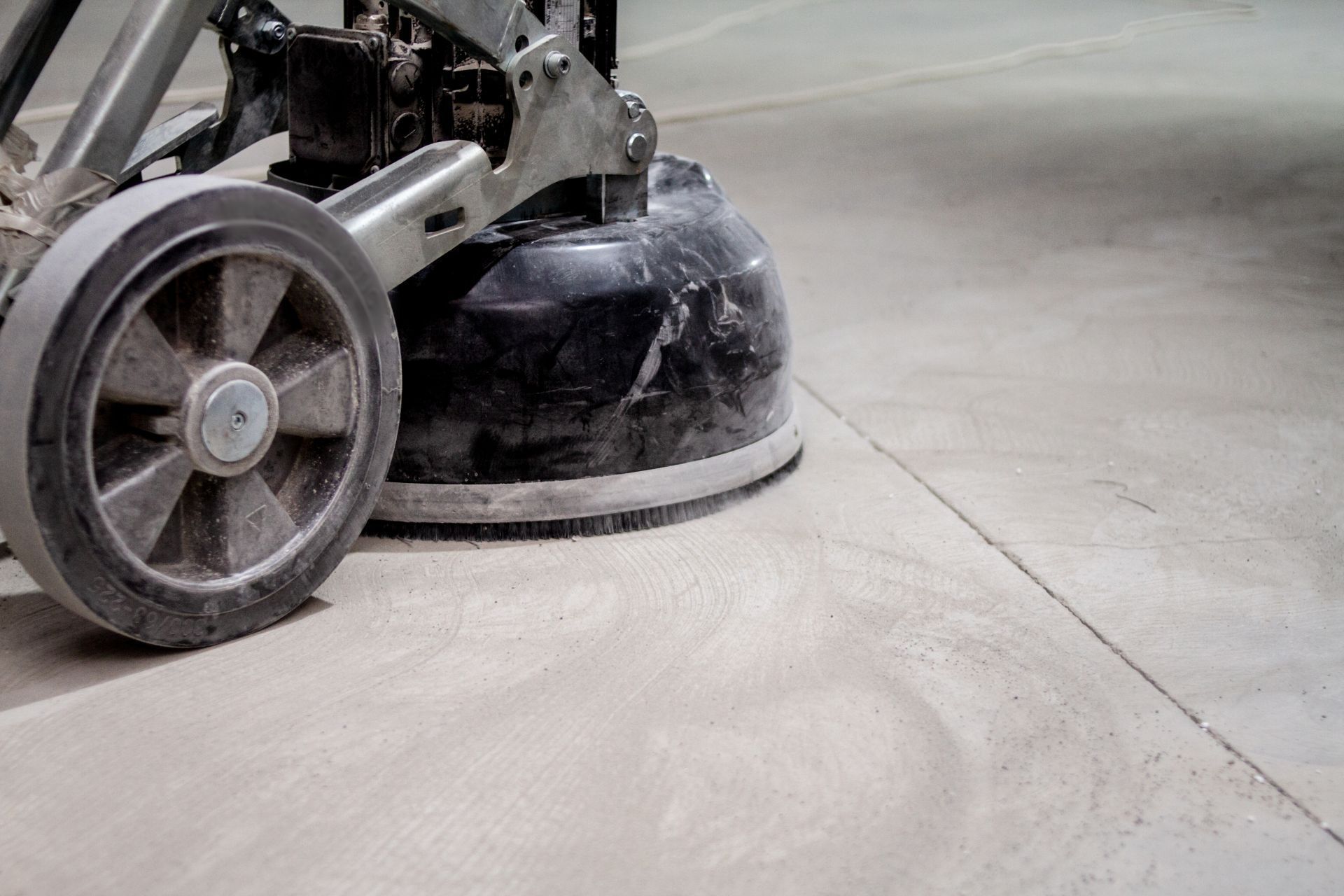

Coating adhesion depends entirely on surface preparation quality, yet this critical step often gets minimal attention in failed installations. Diamond grinding and shot blasting remove old coatings, oils, and carbonated surface layers while opening the concrete pore structure to accept new coatings. Next Level Epoxy provides comprehensive surface preparation services in Andover that address the substrate conditions coating manufacturers require for warranty coverage, including crack repair, joint filling, and profile verification before any coating products are applied to the prepared surface.

The preparation process varies based on concrete condition and intended coating system, but typically includes mechanical grinding to remove contaminants, crack routing and filling with flexible repair compounds, and surface leveling where settlement or deterioration has created uneven areas. Shot blasting provides more aggressive preparation for heavily contaminated slabs or those with thick existing coatings, using steel shot propelled at high velocity to blast away surface material and create the texture profile needed for mechanical bonding.

Request a site assessment to determine which preparation methods your concrete requires based on current surface condition and coating objectives.

Concrete contaminated with oils, curing compounds, or carbonation develops a weak surface layer that prevents coating adhesion regardless of product quality or application skill. Mechanical preparation removes this compromised layer and exposes fresh aggregate and cement paste with open pores that allow coating to penetrate and bond mechanically rather than simply sitting on top of a contaminated surface. The resulting profile—measured in mils of texture depth—provides the mechanical interlock that keeps coatings bonded under thermal stress, traffic loads, and the expansion-contraction cycles that otherwise cause delamination in poorly prepared installations.

After preparation, the concrete surface has a uniform texture without the glossy patches indicating oil contamination or the dusty white deposits of efflorescence that signal moisture issues. Cracks are filled flush with surrounding concrete and no longer collect dirt or pose tripping hazards, though filled cracks remain visible as repair lines since the filler material does not match the appearance of the original concrete. The prepared surface is ready to accept coating immediately, with no additional cleaning or treatment required before installation proceeds.

Preparation does not fix structural problems like heaving slabs, settlement cracks, or drainage issues that cause water intrusion—those conditions require separate remediation before coating installation. Surface preparation creates the proper foundation for coating adhesion but cannot overcome ongoing substrate movement or water problems that would compromise any coating system regardless of installation quality.

What is the difference between diamond grinding and shot blasting?
Diamond grinding uses rotating discs with diamond segments to remove surface material and create texture, working well for light contamination and existing thin coatings, while shot blasting propels steel media at high velocity to aggressively remove thick coatings and heavy contamination through impact rather than abrasion.
How do you determine the correct surface profile?
Profile depth depends on the coating system being installed, with manufacturer specifications typically requiring specific ranges measured with profile gauges, and insufficient profile causes adhesion failure while excessive profile creates pinholes and surface imperfections in the finished coating.
Can all cracks be repaired before coating?
Hairline cracks get filled with flexible polyurea or epoxy compounds that bridge the crack and prevent further dirt intrusion, but active structural cracks that continue to move require different approaches including control joint installation or acceptance that the crack will eventually telegraph through any coating material.
What contaminants prevent coating adhesion in Andover?
Oil from vehicles, deicing salts, tire plasticizers, curing compounds, and carbonation all create barriers that must be mechanically removed, with Andover garage floors commonly showing salt accumulation from winter vehicle storage that requires thorough preparation before coating products will bond reliably.
How long does surface preparation take?
Time varies with slab size, contamination level, and number of repairs needed, with most residential garage floors requiring four to eight hours of preparation work before coating application can begin, though heavily contaminated commercial spaces may need multiple days of preparation and repair.

Foundation Work That Determines Coating Performance
